Shenyang Jiaxin Steel Ball Factory was founded in 1996 and is one of the leading Chinese private companies specializing in the production and sales of carbon steel balls, stainless steel balls, bearing balls, and copper balls.
About Company
Shenyang Jiaxin Steel Ball Factory
World Leadership With High Precision Ball Products
Jiaxin Steel Ball Factory is located in Shenyang, the capital of Liaoning Province, close to major highway intersections and ports. The factory covers an area of 4,500 square meters and is equipped with modern production and testing equipment, and the engineering and technical staff are highly experienced.
The main products of the company include carbon steel balls, stainless steel balls, bearing balls, and copper balls, with sizes ranging from 0.5 millimeters to 200 millimeters, including metric and imperial sizes, standard sizes, as well as extra large and extra small sizes. We produce steel balls for bearings in various precision grades from G20 to G1000. They are suitable for applications in bearings, new energy, machinery, chemical industry, automobiles, construction, oil fields，military, and other industrial fields.
The company offers customized services, characterized by fast delivery and high quality. Shenyang Jiaxin Steel Ball Factory has passed the ISO 9001:2000 international quality system certification, with strict quality control at every stage of production, and is committed to providing high-quality steel balls and excellent services to customers around the world.
The company has the qualification for import and export, and its product marketing network is spread all over the world, with products currently being exported in large quantities to countries such as Japan, South Korea, the United States, Germany, South Africa, and other European and American countries.
Shenyang Jiaxin Steel Ball Factory

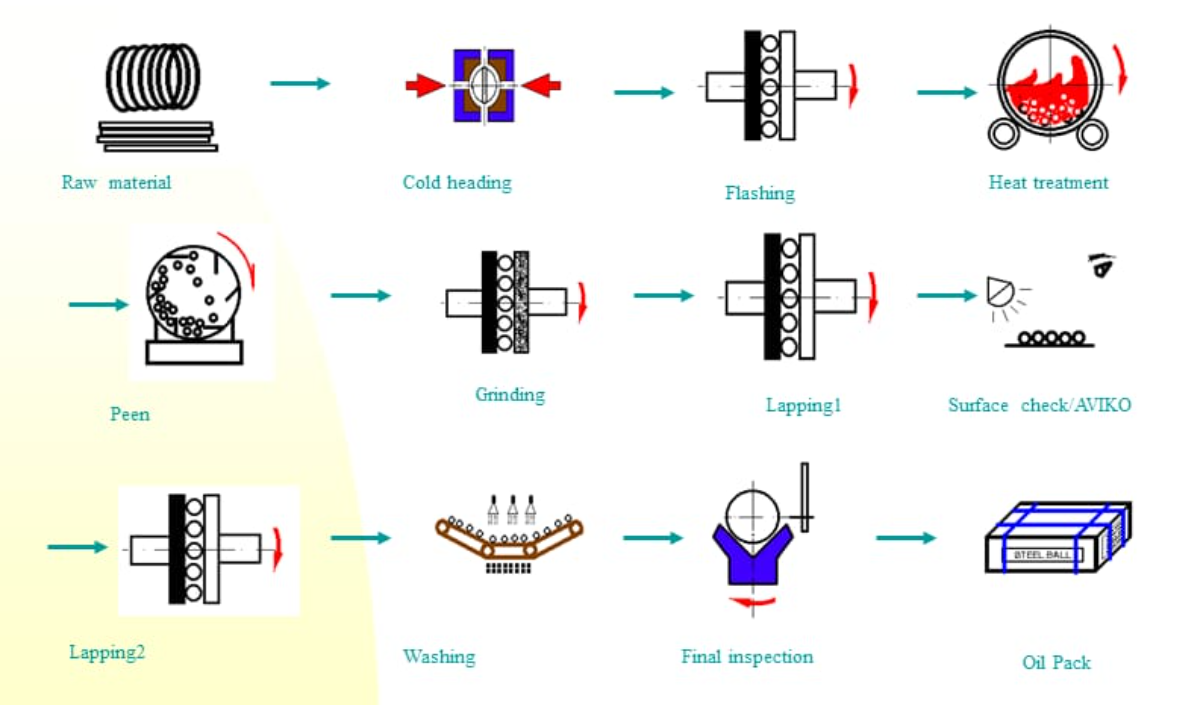

Our Manufacturing
Raw Material,Wire Drawing:
Raw Material and Wire Drawing has been tested and accepted by our inspecting,department, then heading by high speed automatic machine to meet the precision requirement.
Cold Forging:
Ball blanks are cold or hot headed from rolls of wire rods or bars, depending on size and material. The heading machine shears a short cylinder whose length is determined by the size of the balls. A moving die with a concave spherical cup then draws the cylinder into an identical, fixed-die matching-cup and forms it to become aspherical.
Flashing:
Heading blanks are roughly grounded during rotation under pressure with disk grooves to improve the precision of the balls.
Heat Treating:
All balls are precceded in a full automatic-controlled heat-treatment firm;these procedures guarantee the balls maximum hardness,reliability and durability
Grinding and Lapping：
The grinding and lapping operations can reduce the deviations and brighten the surface ofthe balls, after complete all the procedures we produce the highest quality balls to supply our global customers.
Shenyang Jiaxin Steel Ball Factory.

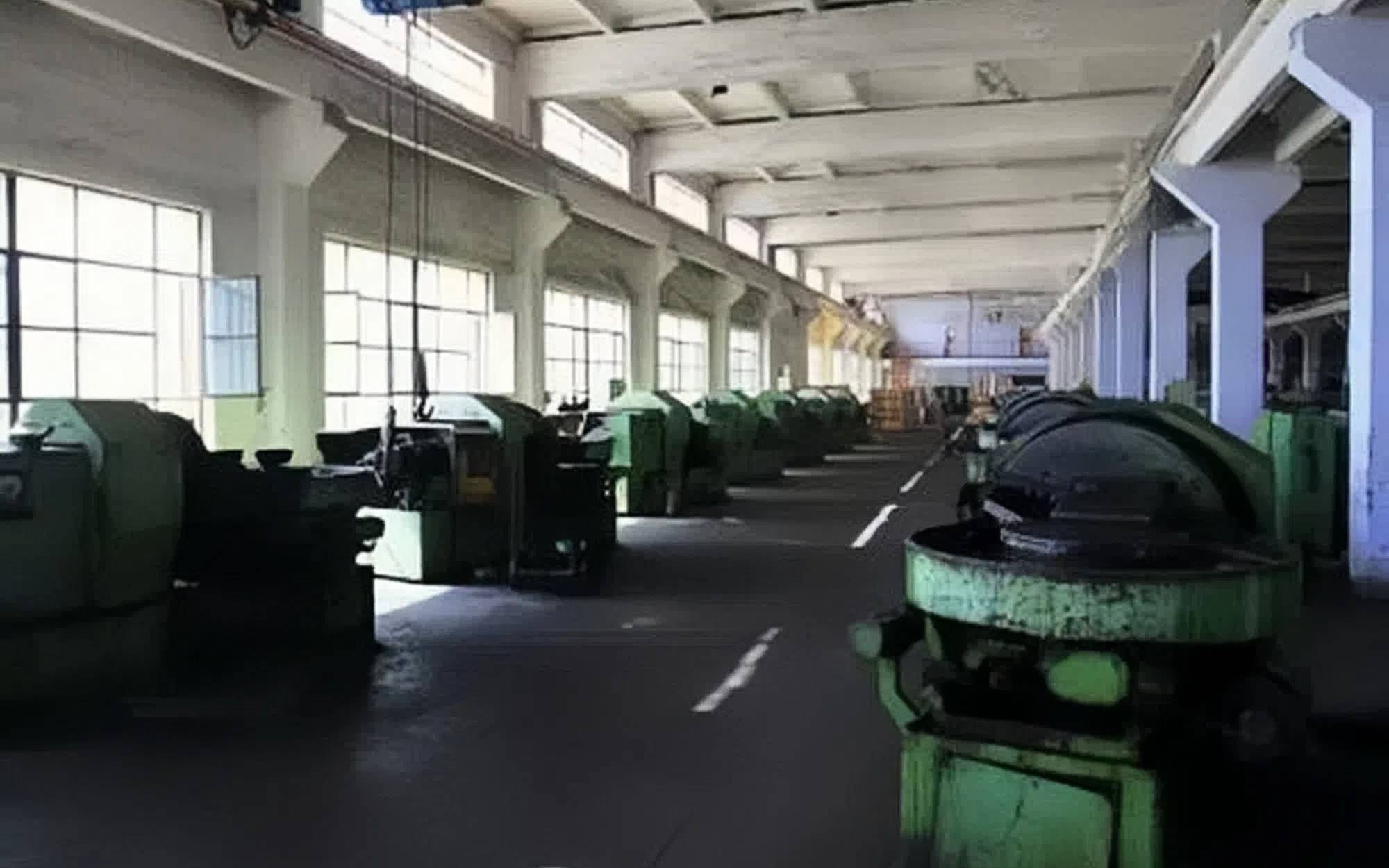

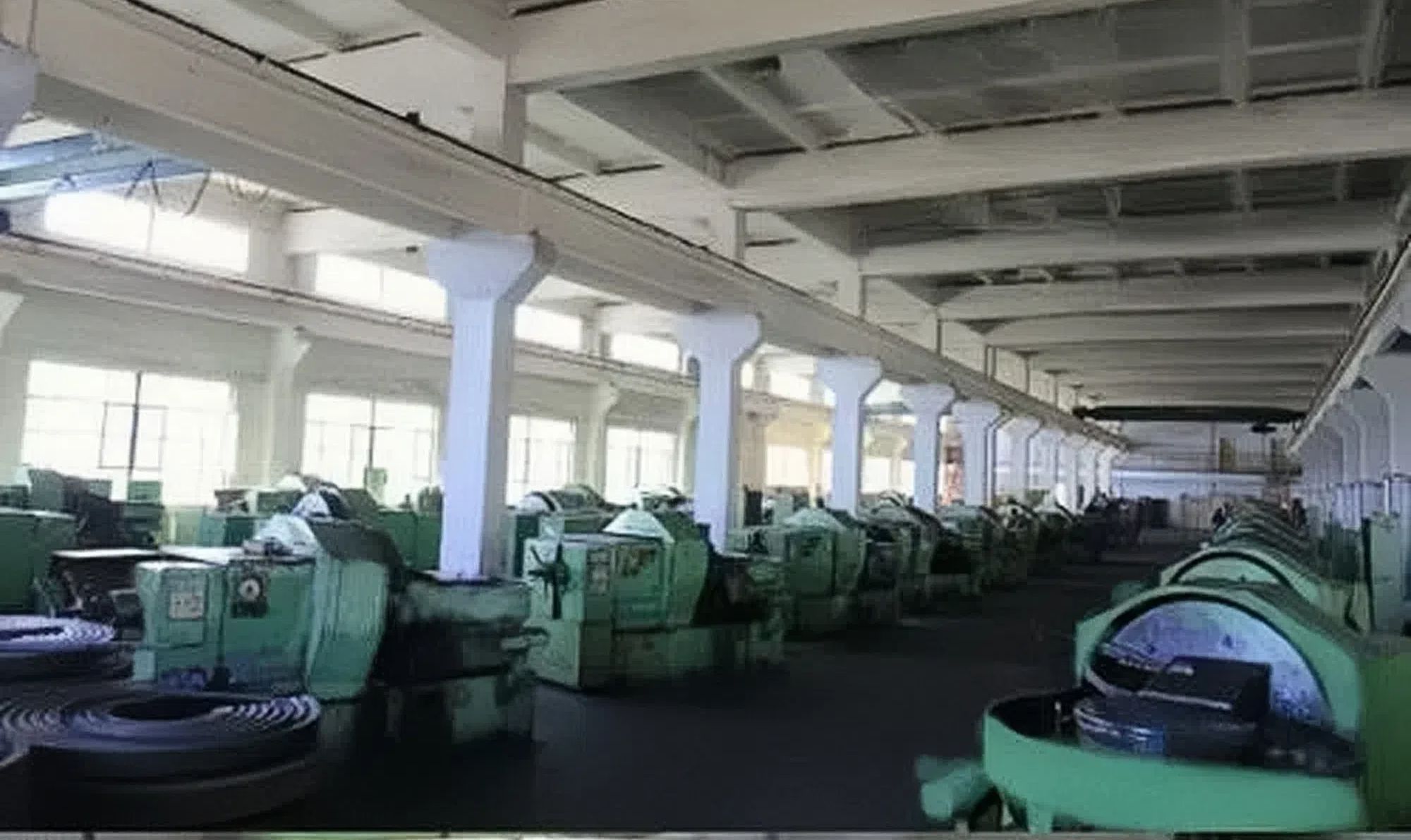

Our Manufacture Picture
Shenyang Jiaxin Steel Ball Factory specializes in the production of precision steel balls and has the professional capability to produce various sizes of steel balls, from large to small.
